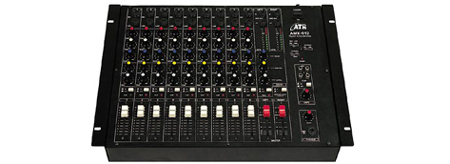

PA Audio Mixer (AMX-1412, AC & 24V DC )

Request to Call Back Send Inquiry

Product Description

Features:

Input Channels : Each Channel has separate 1/" balanced phone jacks for Mic and Line & accepts both balanced & unbalanced signals.
AUX Control : This controls the level of the channel in the final mix to Aux Send output.
AUX Send & AUX Return : These have been provided for sending the pre-fader output of channels for monitoring or adding a Special Effects Unit.
MONO/STEREO Output : Mono output is available from either Left & Right output jacks when the switch is in 'Mono' position.
Individual GAIN Control.
TAPE Section (For play and record facility).
Master Faders.
Headphone
BASS, MID & TREBLE Controls
Channel On/Off switches & Faders provided.
ECHO Section (Delay Repeat, level controls)
PAN Control (for individual channels).

Specifications:

POWER REQUIREMENTS		AC: 220-240V 50/60Hz DC: 24V (2 X 12V Car Battery)
MIC INPUT (Impedance/Gain)		2kΩ/62dB
LINE INPUT (Impedance/Gain)		20kΩ Balanced/42dB 10kΩ Unbalanced/42dB
DISTORTION		< 0.08%
FREQUENCY RESPONSE		30Hz - 20kHz (+0, -1dB)
TONE CONTROLS		Bass :±12dB at 100Hz, MID :±12dB at 2kHz Treble :±12dB at 10kHz
LINE OUTPUT	LO	-10dBm/+2dBm (200mV/1V)
	HI	0dBm/+17dBm (775mV/5.5V)
ECHO/REVERB SYSTEM		Digital Signal Processing
S/N RATIO		>70dB (0dBm, 0.775V)
DIMENSIONS		W633 X H93 X D420 mm
